Communication Modules
CB-0010

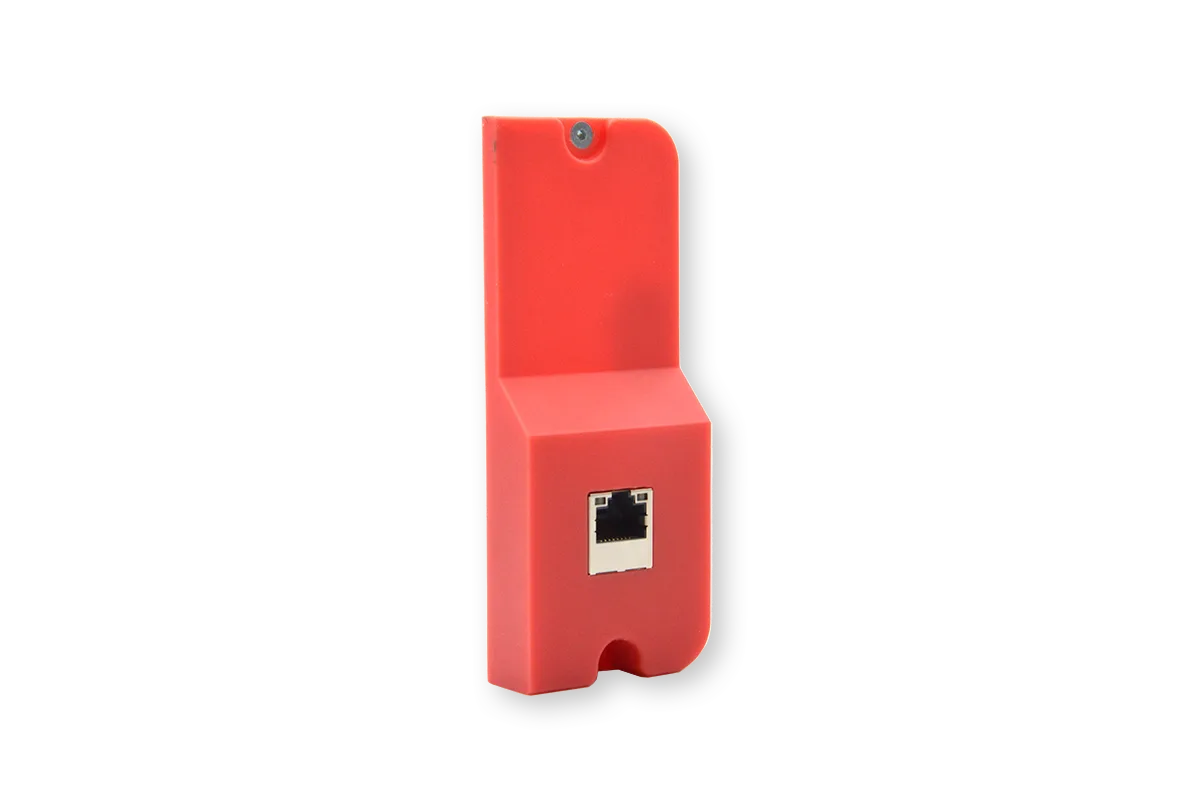

Gigabit Ethernet communication module.
100Mbs/1Gbps Ethernet communication module for BLOX platform
Description
The CB-0010 allows you to connect the BLOX to an 100Mbps/1Gbps ethernet network. The module has an standard RJ45 connector with status leds.
Block diagram
The above diagram shows the block diagram of the communication module. The module has one RJ45 socket with build-in magnetics.
There are also 2 status LEDs available:
- Link status - Green LED
- Activity status - Orange LED
Connections
P1 port
The P1 port is a standard RJ45 socket
| Pin# | Pin Name | Description |
|---|---|---|
| 1 | TxRx A + | Bi-directional pair A + |
| 2 | TxRx A - | Bi-directional pair A - |
| 3 | TxRx B + | Bi-directional pair B + |
| 4 | TxRx C + | Bi-directional pair C + |
| 5 | TxRx C - | Bi-directional pair C - |
| 6 | TxRx B - | Bi-directional pair B - |
| 7 | TxRx D + | Bi-directional pair D + |
| 8 | TxRx D - | Bi-directional pair D - |
